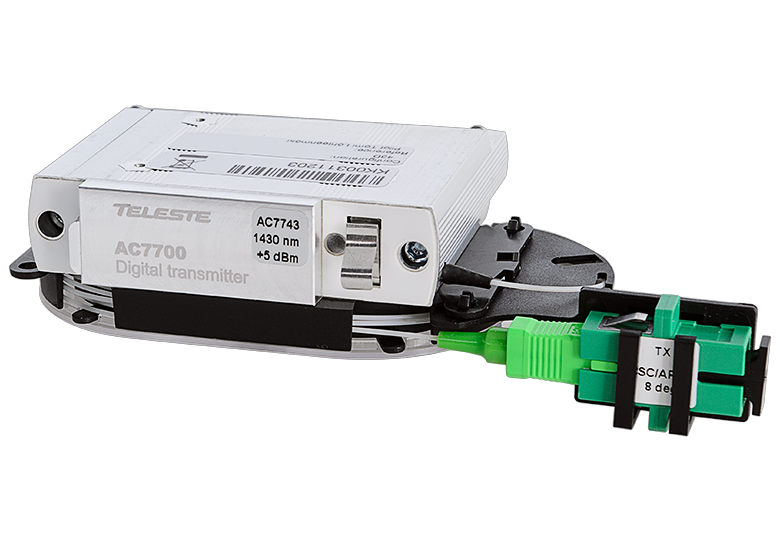

AC7700 Digital transmitter
AC7700 products are digital CWDM DFB laser transmitters for the return path applications of the AC9000 node. The module has two return path inputs and one optical wavelength carries two RF return paths.
Features at a glance:
- Two RF return paths on one optical carrier
- High optical output power
- Long link span
- Low power consumption
NOTE: This product has reached end-of-life status which means that it may no longer be supported and is not orderable from Teleste. Please see the end-of-life page in MyTeleste for more information.
Product Specifications
Optical parameters
Light source
Uncooled DFB laser with optical isolator
Centre wavelengths available
1270, 1290, 1310, 1330, 1350,
1370, 1390, 1410, 1430, 1450,
1470, 1490, 1510, 1530, 1550,
1570, 1590 and 1610 nm
1370, 1390, 1410, 1430, 1450,
1470, 1490, 1510, 1530, 1550,
1570, 1590 and 1610 nm
Wavelength temperature coefficient
0.1 nm/°C
Spectral width
0.3 nm
Output power
+5 dBm
Transmission distance
75 km
Number of optical outputs
1
Digital parameters
Data rate
5 Gbps in optical link
Analog to digital conversion
12 bits
RF parameters
Frequency range
5…65 MHz or 5…85 MHz
Input level, AC9000 node
60 dBμV
RF impedance
75 Ω
Input return loss
20 dB
RF test point
See note
Number of RF inputs
2
System parameters
System consists of AC9000 node with AC7700, HDO272 and 75 km fibre.
Link gain
37 dB
Flatness
±0.75 dB
CINR peak
49 dB
CINR dynamic range
12 dB within 40 dB CINR window
Isolation
49 dB
General
Supply voltage
12 V / 340 mA
Power consumption
4 W
EMC compatibility
EN 50083-2
Operating temperature range
-40…+55 °C
Storage temperature range
-30…+70 °C
Dimensions
75 x 62 x 34 mm
Weight
130 g
Output connector
SC/APC, E-2000/APC or FC/APC
