E62 Transponder

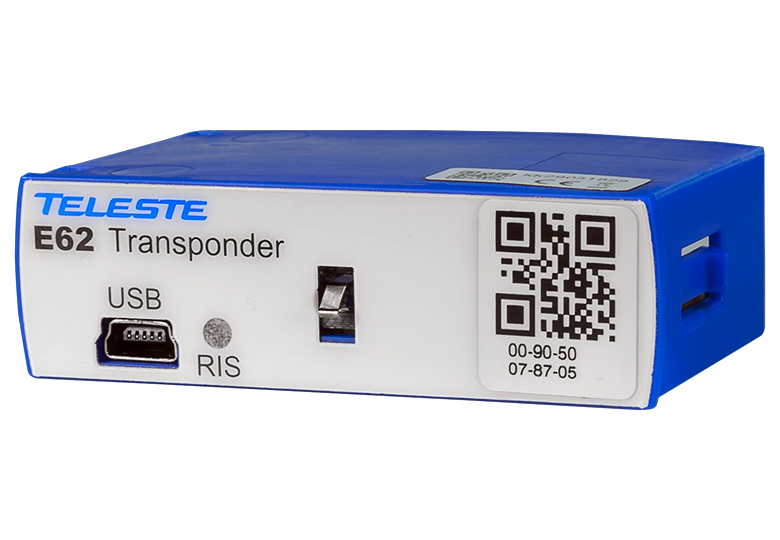

The E62 is a transponder module for status monitoring, ingress switch remote control, RF power measurement and automatic alignment / ALSC. It is installed into the RIS module slot of Teleste E3 amplifier or E8 node.
Features at a glance:
- Compatible with E3 amplifier and E8 node
- Plug-in unit with no additional cables
- Front panel led for RIS link and RF power status
- Front panel USB port for amplifier/node configuration
- RIS (Remote Ingress Switching) receiver with automatic scanning
- HDO203 and HDO206 compatible monitoring transmitter
- Automatic power save control based on measured RF power
- Automatic forward path alignment based on measured RF power
- ALSC with preconfigurable target levels (E3 only)
- Remote monitoring via HDO203 or HDO206 of:
- Optical input power with alarm (E8)
- Laser bias current with alarm (E8)
- Output RF power with alarm and optional power save control
- Internal temperature with alarm
- Lid open, RIS link, power save, and ingress switch statuses
- Uptime, reset count and temperature statistics
NOTE: This product has reached end-of-life status which means that it may no longer be supported and is not orderable from Teleste. Please see the end-of-life page in MyTeleste for more information.
Product Specifications
RIS receiver
Compatible headend transmitter
HDM155
Data rate
9380 bps
Modulation method
FSK, Df = ±25 kHz
Channel bandwidth
0.2 MHz
Downstream frequency range
115…130 and 245…260 MHz
Scanning step
0.25 MHz
Recommended carrier level at amp output
90…105 dBµV
Monitoring transmitter
Compatible headend receiver
HDO203 or HDO206
Data carrier frequency
10.7 MHz
Modulation method
FSK ±67 kHz, 38400 bps
Channel bandwidth
0.4 MHz
Equivalent transmit level
58 dBμV
Maximum number of transmitters
16 (per HDO203 or HDO206 optical input)
RF power measurement
Measurement type
Full band up to 1.2 GHz, Low band up to 600 MHz
Dynamic range (typical)
2…21 dBm
Measurement inaccurancy (typical)
< 1 dB
General
Connector
USB mini-B
Power consumption
0.5 W
Dimensions (h x w x d)
20 mm x 70 mm x 50 mm
Operating temperature range
see platform specifications
EMC
EN 50083-2
