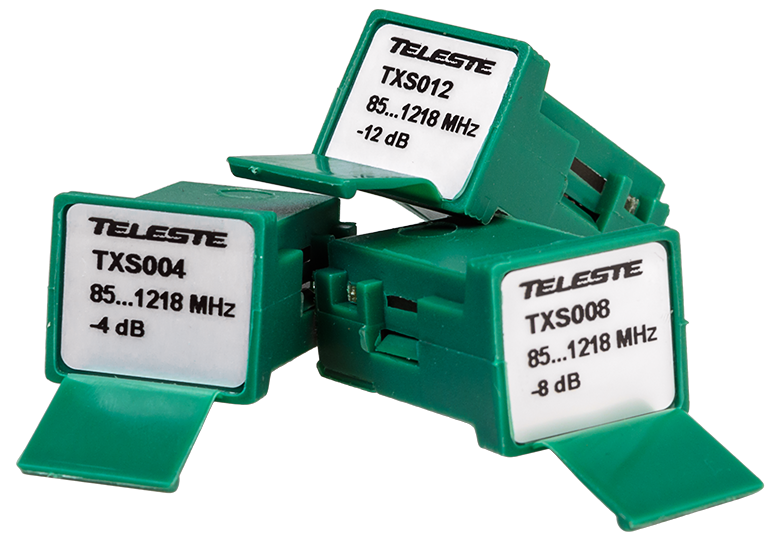

TXS0xx Cable simulator
The TXS0xx series cable simulators with a supported frequency range of 85…1218 MHz are designed to be used in 1.2 GHz amplifiers, but they can be used also in 1 GHz and 862 MHz products. The slope curve follows the shape of the Tellu 3 trunk cable.
Product Specifications
Technical data
Frequency range
85…1218 MHz
Return loss
20 dB
Flatness
± 0.3 dB
Slope accuracy
± 0.5 dB
Feed through attenuation (@85 MHz)
< 1.5 dB
Mechanics
T-mechanics (21 x 18 x 31 mm), green
