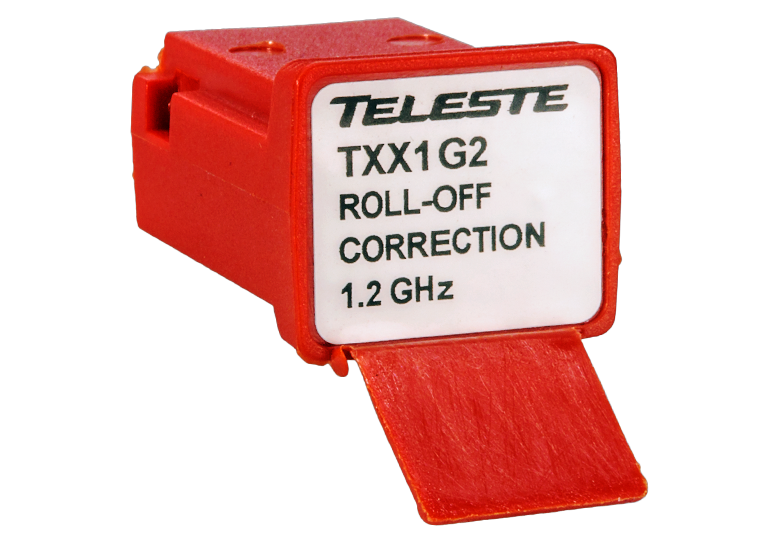

TXX1G2 Roll-off correction plug
The TXX1G2 is a forward path equaliser with a supported frequency range of 85…1218 MHz that corrects roll-off at the high-frequency end. It should be used in the universal plug-in place of a downstream. This plug is automatically recognised by intelligent amplifiers AC3x10.
Product Specifications
Technical data
Frequency range
85…1218 MHz
Return loss
15 dB
Flatness
± 0.3 dB
Slope
– 0.5 dB
Basic insertion loss
3.5 dB typ.
Insertion loss @ 1218 MHz
1.0 dB typ.
Mechanics
T-mechanics (21 x 18 x 31 mm), red
