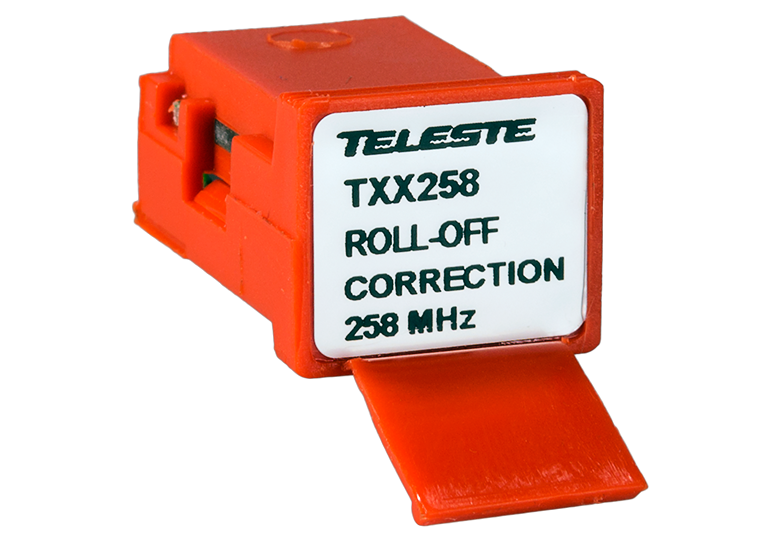

TXX258 Roll-off correction plug
The TXX258 is a forward path equaliser with a supported frequency range of 258…1218 MHz that corrects roll-off caused by 204/258 MHz diplex filters. It should be used in the universal plug-in place of a downstream. This plug is automatically recognised (ver.2) by intelligent amplifiers AC3x10.
Product Specifications
Technical data
Frequency range
258…1218 MHz
Return loss
15 dB
Flatness
± 0.3 dB
Slope
± 0.3 dB
Basic insertion loss
3.5 dB typ.
Insertion loss @ 258 MHz
2.0 dB typ.
Mechanics
T-mechanics (21 x 18 x 31 mm), red
