HDO570 RFoG Optical 4-port WDM
The HDO570 RFoG is a bidirectional, 4-port WDM module that combines or divides different wavelengths to and from the common port. HDO570 RFoG supports RF overlay, xPON and RFoG applications.

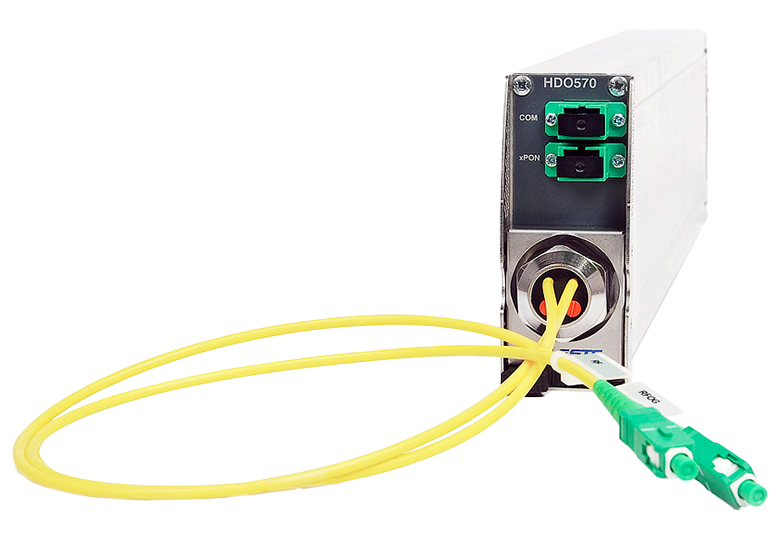

Fibre connectors can be located either on the front or the rear of the module. The module is passive, requires no power, and is mechanically compatible with HDX002 and HDX003 installation frames
Product Specifications
Optical parameters
Operating wavelength range
Common port
xPON DS and US port
RF DS port
RFoG US port
Common port
xPON DS and US port
RF DS port
RFoG US port
1270…1620 nm
1270…1350 nm and 1480…1500 nm
1550…1560 nm
1604…1618 nm
Insertion loss
xPON DS and US port
RF DS port
RFoG US port
xPON DS and US port
RF DS port
RFoG US port
1.8 dB
1.5 dB
1.1 dB
Isolation
25 dB
Directivity
45 dB
Return loss
45 dB
Directivity
50 dB
Return loss
45 dB
Maximum optical power
300 mW
Number of optical ports
4
General
Power consumption
0 W
Optical connector
SC/APC or E-2000/APC
Dimensions
2U x 7HP x 380 mm
Weight
1.5 kg
EMC compatibility
EN 50083-2
Operating temperature range
0…+45 °C
Storage temperature range
-20…+60 °C
Operating relative humidity
0…85 %
