HDO572 Optical xWDM mux/demux
The HDO572 is a 4 channel optical multiplexer/demultiplexer that provides a high-density solution for distributing wavelength services. The unit is available either for CWDM or DWDM deployments. The HDO572 is a bidirectional module
designed either to combine different wavelengths from various inputs to one fibre – or to divide different wavelengths from one fibre to various outputs. The DWDM option has also an upgrade port to combine other DWDM channels into existing DWDM wavelengths. The CWDM option has also an extension port to combine 1310 nm signal with CWDM wavelengths.

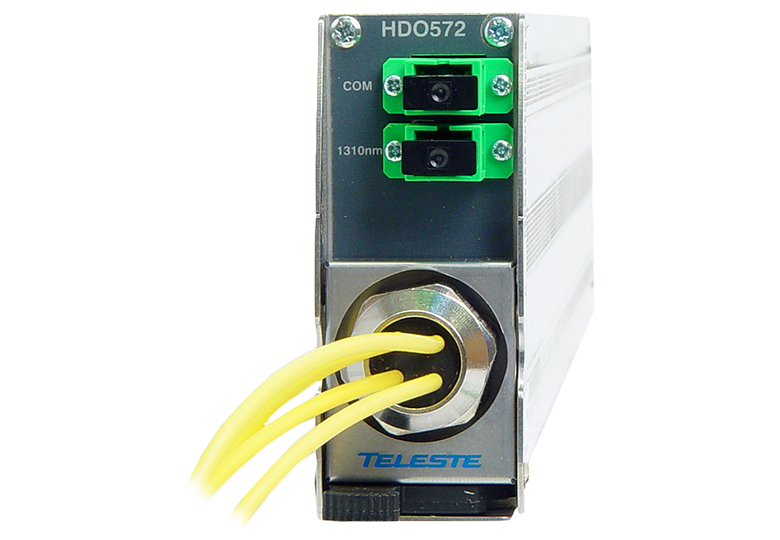

Fibre connectors can be located either on the front or the rear of the module. The module is passive, requires no power, and is mechanically compatible with HDX002 and HDX003 installation frames.
Product Specifications
– Type S7E
– Type C1E
– Type C5E
– Type S7U
1310, 1471, 1491, 1511 and 1531 nm
1310, 1511, 1531, 1551 and 1571 nm
1310, 1551, 1571, 1591 and 1611 nm
UPG, 1471, 1491, 1511 and 1531 nm
– Type A45, 4 ch multiplexer
– Type B45, 4 ch demultiplexer
– Type A53, 4 ch multiplexer
– Type B53, 4 ch demultiplexer
ITU ch 45, 47, 49, 51
ITU ch 45, 47, 49, 51
ITU ch 53, 55, 57, 59
ITU ch 53, 55, 57, 59
