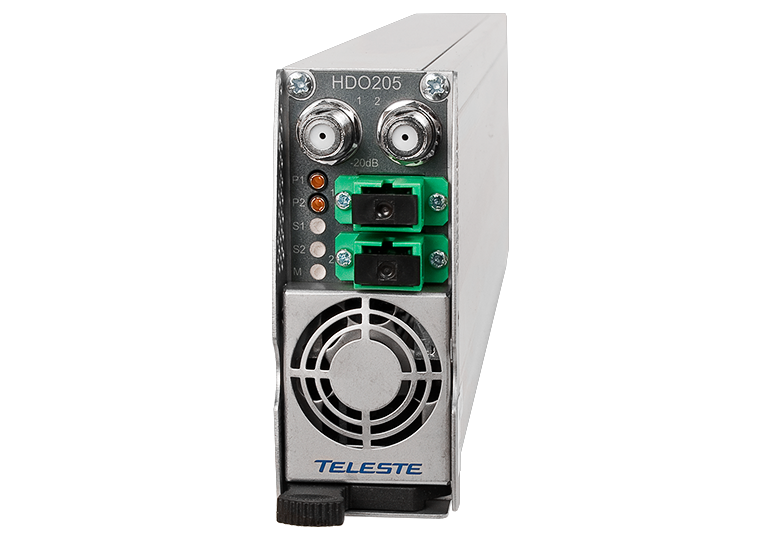

HDO205 Receiver
The HDO205 is a dual receiver module for fibre optic return path (upstream) links in CATV networks. The excellent receiver sensitivity enables a very low optical input power like used in cable PON (RFoG) applications. The module features front panel RF test points and DC test points for optical input power. Optical input connectors can be factory installed at the rear or at the front panel.
Features at a glance:
- Two independent return path receivers
- Excellent noise current density
- Wide input power/ output level range that enables very low optical input power used in cable PON (RFoG) applications
- Three output level control modes: 1) Manual 2) Automatic based on OMI – target output level and optical input level, 3) Automatic based on optical input level
- Small form factor family, 2 RU height
- Fibre connectors can be located at the rear or at the front panel
NOTE: This product has reached end-of-life status which means that it may no longer be supported and is not orderable from Teleste. Please see the end-of-life page in MyTeleste for more information.
Product Specifications
Optical parameters
Light wavelength
1000…1620 nm
Input power
-30…-5 dBm
RF parameters
Frequency range
5…85 MHz
Output level
2 * Popt + 134 dBμV
Flatness
±0.75 dB
Slope variation
±0.75 dB
RF impedance
75 Ω
Output return loss
18 dB
Level control range
60 dB
RF test points
20 dB
Isolation
60 dB
Linearity and noise parameters
Noise current density
1.5 pA/√Hz
3rd order distortion
-60 dB
2nd order distortion
-60 dB
General
Power consumption
4.7 W
Supply voltages
25 V / 130 mA
6.3 V / 220 mA
6.3 V / 220 mA
Optical connector
SC/APC
RF connectors
F female
Cooling
Free air flow
Dimensions (h x w x d)
2U x 7HP x 380 mm, Occupies 1/12 of HDX002
Weight
1.5 kg
EMC compliance
EN 50083-2
Enclosure classification
IP20
Operating temperature range
0…+45 °C
Storage temperature range
-20…+60 °C
Operating relative humidity
0…85%
