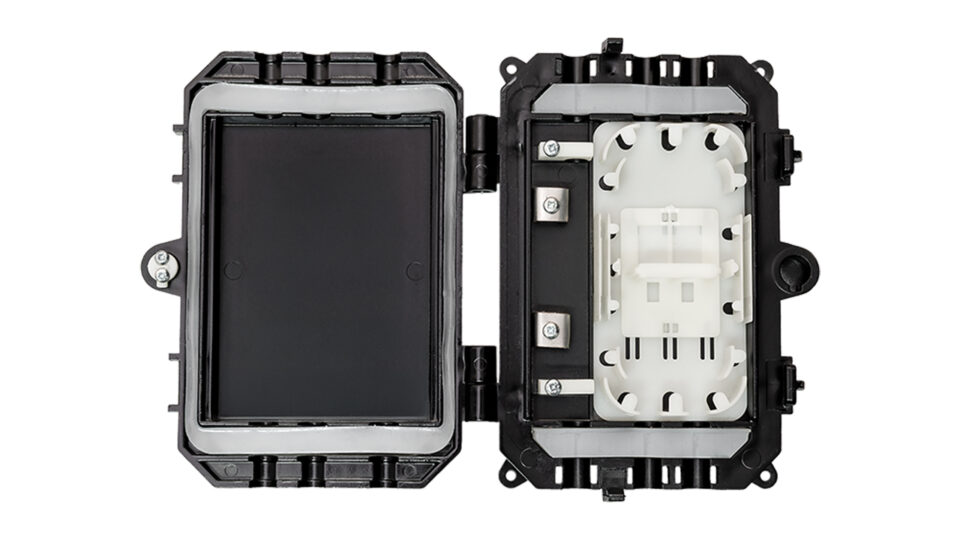

Teleste Enlighten FMN2 IP68 Customer Enclosure
Compact IP68 enclosure for easy customer connections and repair needs
Defining the Target Use Case
In order to quickly connect customers to underground FTTH networks, a connection point is required near the home from which the customer drop cable can be connected to the distribution network. This connection point could be in a ducted network or more possibly in a non-ducted network i.e. where the FTTH cabling is directly buried in the ground. Thus, the connection point needs to be versatile enough to handle both these installation requirements and ensure the customer connection is made trouble free and long lasting. The enclosure should be rated for outdoor environments at IP68 and must be easy and simple to operate whilst maintaining IP68 integrity when closed, making drop connections safe and secure.
As the network could be designed to use connectors or direct splices, then both of these scenarios need to be accommodated. Also, the network and customer drop cables can be presented to the enclosure from multiple directions, so it is important that the enclosure supports multiple cable entry ports suitable for all the common sizes of FTTH fiber cables including through cables. These cables need to be secured safely and the fibers within routed effectively & efficiently to ensure their long operating life and performance required.
Detailed Solution Requirements to achieve the Use Case
The solution should satisfy the need for a very compact underground connection enclosure, serving up to 2 customers via underground drop cables. It is important that this enclosure can support all of the use case and installation requirements along with the physical elements of the fiber network. This could be done by conforming to all latest fiber installation techniques and adhere to best practices & industry requirements for fiber management and splicing in underground applications.
It is important that the enclosure is compact, easy to use and maintains IP68 integrity. It has a splice tray to easily connect between the incoming distribution side cabling and the outgoing customer drop cabling. It should also support through cabling with secure retention, and it should provide for fitting various adapters for standard connector types to support 2 customers.
The customer drop cables should be easy to install without impacting on the network side distribution cabling and have several cable entry port options. Customer drop cables should be securely held in place, and the enclosure should be easy to install in small Toby Box style chambers or directly buried in the ground. The enclosure should also be able to support network repair needs, providing a compact secure enclosure for splicing up to 12 fusion splices and containing securely in an IP68 environment.
The TEN-FMN2 has been designed to meet these requirements in a compact, rugged IP68 enclosure product.
TEN-FMN2 Features and USPs
The TEN-FMN2 has been developed with the following main features, demonstrating its capability and benefits for used as a compact customer connection enclosure.
- Ultra-small and compact enclosure
- Suitable for outdoors mounting, IP68 rated
- Unique and flexible sealing system ensures straightforward installation
- Customer drop cables supported via 4 cable ports
- Baseplate for fiber routing and management
- Splice holders support 4 fusion splices (2 double stack)
- Clip-in tray supports 12 splices
- Pass through cabling support
- Can be used as network splicing enclosure for repair needs
Summary
The FMN2 is a highly versatile, compact IP68 enclosure that is ideal for both customer connections and repair splicing needs. It can be directly buried in the ground or can be placed in very small Toby Boxes depending on the network architecture design. It can easily connect up to 2 customers with several cable entry ports available and supports splicing for up to 12 splices making it highly versatile for network repairs and extensions.
Learn more about the TEN-FMN2 customer enclosure!
The TEN-FMN2 is a unique IP68 customer connection enclosure designed for up to 2 customers. This highly compact enclosure can be directly buried in the ground or placed in our specially designed handholes, which support both surface and below-ground installation.
